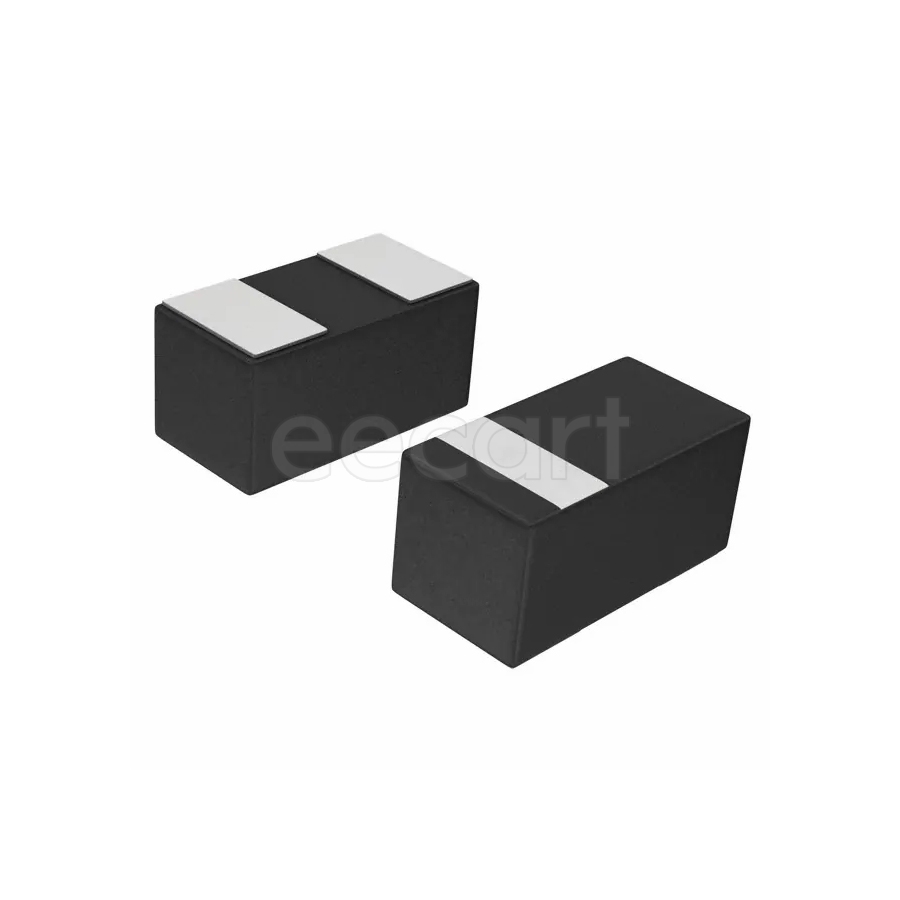

NSR20F30NXT5G
Manufacturer:
On Semiconductor
Mfr.Part #:
NSR20F30NXT5G
Datasheet:
Description:
Schottky Diodes 0603(1608 Metric) SMD/SMT Single Forward Current:2 A Forward Voltage:480 mV Max Repetitive Reverse Voltage (Vrrm):30 V Max Forward Surge Current (Ifsm):28 A
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Metric) | 0603 |
| Number of Pins | 2 |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Forward Current | 2 A |
| Forward Voltage | 480 mV |
| Max Power Dissipation | 1.75 W |
| Average Rectified Current | 2 A |
| Max Reverse Voltage (DC) | 30 V |
| Max Reverse Leakage Current | 150 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 30 V |
| Element Configuration | Single |
| Max Surge Current | 28 A |
| Forward Surge Current (Ifsm) | 28 A |
| Peak Non-Repetitive Surge Current | 28 A |
| Reverse Current | 150 µA |
| Schedule B | 8541100080 |
| RoHS | Compliant |
| Packaging | Reel |
Stock: 2889
Distributors
pcbx
pcbxUnit Price$0.40186
Ext.Price$0.40186
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40186 | $0.40186 |
| 10 | $0.37619 | $3.76190 |
| 25 | $0.35216 | $8.80400 |
| 50 | $0.32966 | $16.48300 |
| 100 | $0.30566 | $30.56600 |
| 300 | $0.28340 | $85.02000 |
| 500 | $0.26277 | $131.38500 |
| 1000 | $0.24287 | $242.87000 |
| 3000 | $0.22447 | $673.41000 |
| 5000 | $0.20747 | $1037.35000 |
